| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-107-101 | C-01S | AC clamp meter, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-107-101 | AC clamp meter, Custom #C-01S | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-107-101 | AC clamp meter, Custom #C-01S | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

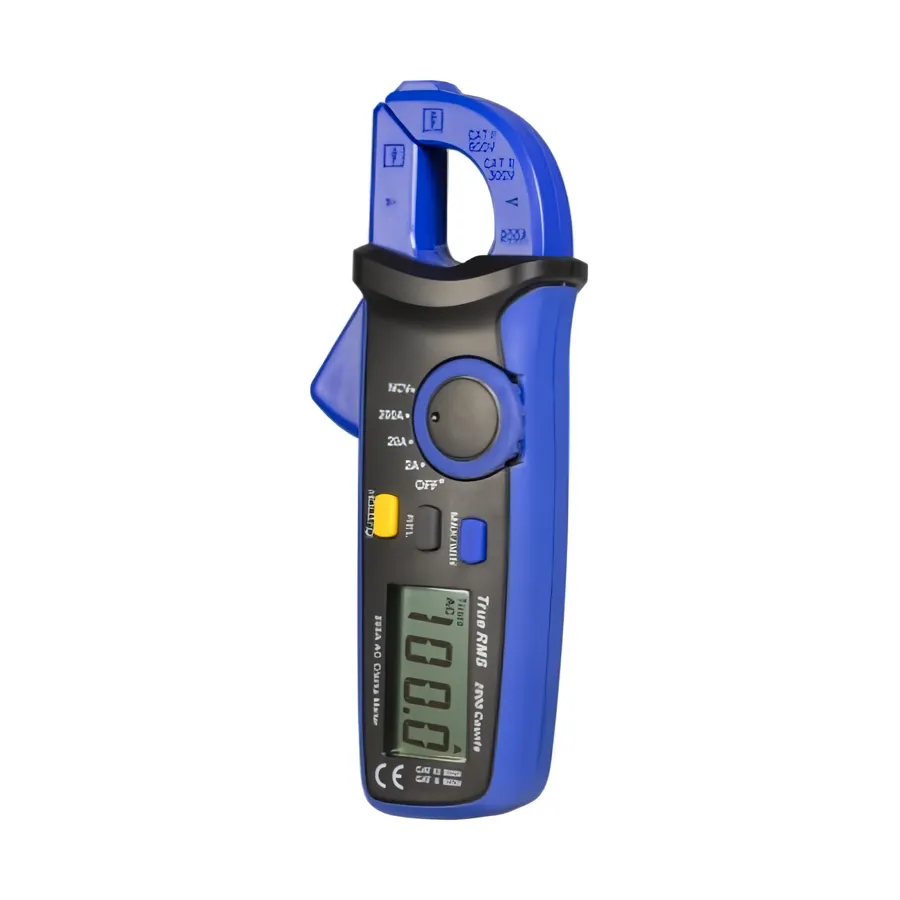

Basic AC clamp meter.
Equipped with MAX hold function and backlight function.
AC current: 2A (resolution: 0001A), 20A (resolution: 001A), 200A (resolution: 01A)
Display: LCD, 2,000 counts
Range switching: Manual
Maximum measurable conductor diameter: φ16mm
Sampling: 2 times/sec
Operating temperature and humidity: 0 to +30°C, 75%RH or less (no condensation) +30 to +40°C, 50%RH or less (no condensation)
Storage temperature and humidity: -10 to +50°C, 75%RH or less (without battery, no condensation)
Size: W60×H158×D34mm
Weight: Approx 170g (including battery)
Battery life: Approx 400 hours (with alkaline battery, backlight off)
Accessories: Instruction manual, storage case
Calibration: Possible
