Custom Alcohol checker AT-10 (Order No. 114-1290-101-101) - Features and Specifications.
info@amayathai.com +66 2 013 6002, +66 94 879 4553
AMATELAS Home > Product Catalog > All Categories > 1141290101 High-accuracy alcohol checker > 114-1290-101-101 Alcohol checker AT-10

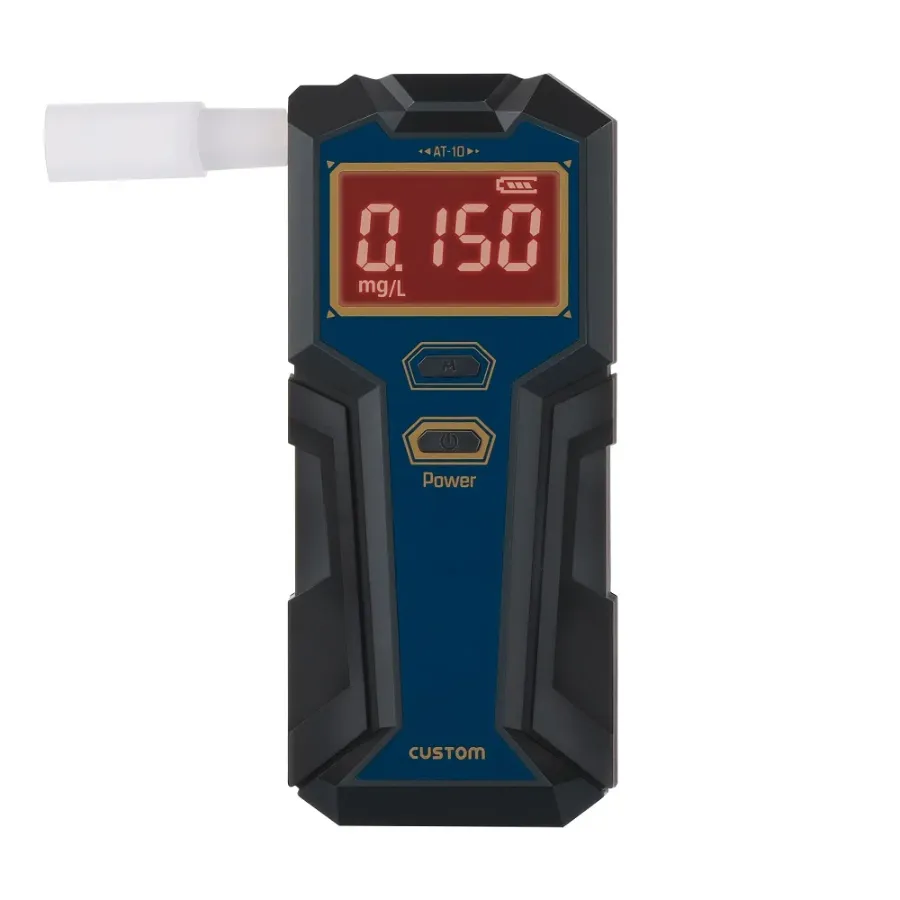

*Product image for illustration purposes only. Actual product may vary.

High-accuracy alcohol checker

Order No. Code Product Name Pack Price
114-1290-101-101​ AT-10 Alcohol checker AT-10, Custom 1 Pc. ฿3,393 ฿3,770

*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

Order No. Product Name Pack Price
114-1290-101-101​ Alcohol checker AT-10, Custom #AT-10 1 Pc. ฿3,393 ฿3,770

*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

Order No. Product Name Pack Price
114-1290-101-101​ Alcohol checker AT-10, Custom #AT-10 1 Pc. ฿3,393 ฿3,770

*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

Features

Equipped with an electrochemical gas sensor for high accuracy.
When exceeding 0.150mg/L, alerts by sound and red display for 5 seconds.
Compatible with dedicated replaceable mouthpieces.

Specifications

Detection method: Electrochemical gas sensor
Measurement range: 0.000–2.000mg/L
Resolution: 0.005mg/L
Alarm setting level: 0.150mg/L
Warm-up time: Approx. 10 seconds
Measurement time: Approx. 5 seconds
Operating environment temperature: 0–50°C, 80% RH or less (no condensation)
Size: Approx. W50×D25×H115mm
Weight: Approx. 70g (including batteries)
Power supply: AAA alkaline batteries ×2 (batteries sold separately)
Battery life: Approx. 500 uses
Sensor lifespan: Approx. 1 year or 20,000 measurements, whichever comes first (reference value, not guaranteed).
*This product is not intended to determine whether driving after drinking is permissible.
