| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-114-101 | ET-01U | Analog earth resistance meter, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-114-101 | Analog earth resistance meter, Custom #ET-01U | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-114-101 | Analog earth resistance meter, Custom #ET-01U | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

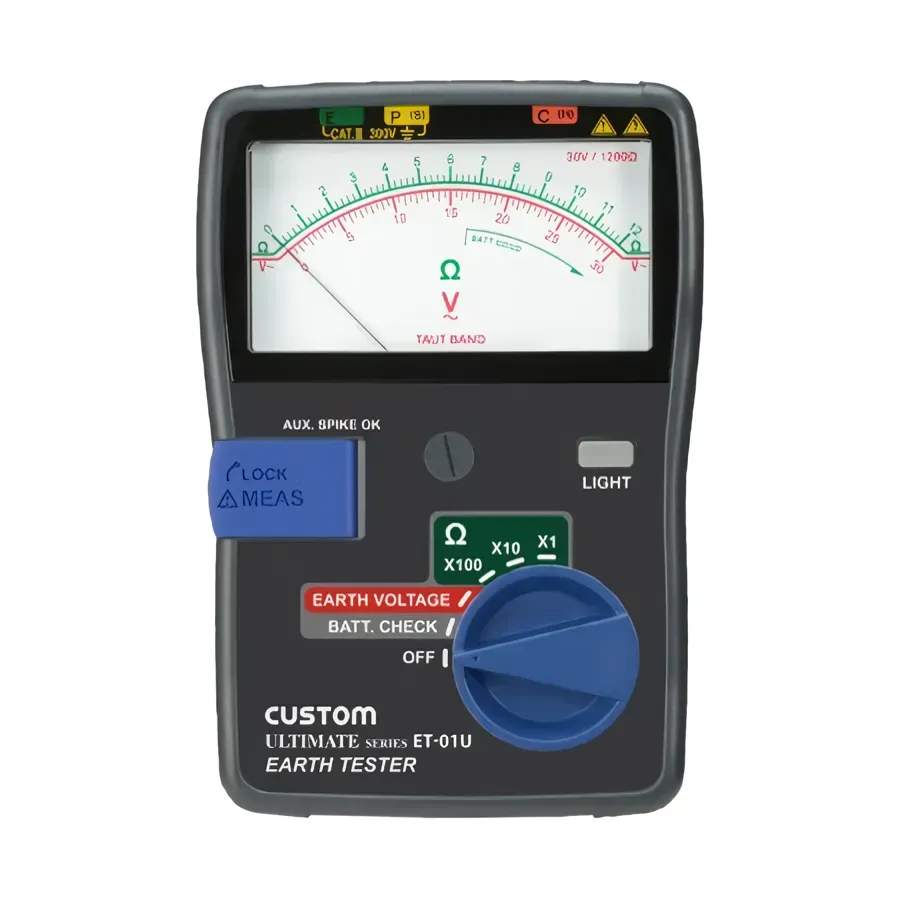

This is an analog earth resistance meter designed for measuring earth voltage and earth resistance. It supports special measurements such as two-wire and selective two-wire methods. Measurement ranges can be switched between ×1, ×10, and ×1000. Equipped with an LED for verifying correct connection and a backlight (scale illumination) for visibility in dark environments.
Display: Analog meter (Taut band type)
Operating temperature/humidity: 0～+40℃, 85%RH or less (no condensation)
Storage temperature/humidity: -20～+60℃, 75%RH or less (no condensation)
Resistance characteristics: Measurement circuits and casing withstand 100MΩ/DC1000V
Voltage characteristics: Measurement circuits withstand AC3700V (50/60Hz) for 1 minute
Measurement function: Earth resistance measurement (3-pole method), auxiliary earth resistance measurement
Battery: 4× AA alkaline batteries
Size: W112×H160×D50mm
Weight: Approximately 350g (excluding batteries)
Accessories: Standard accessory probe set (2 red probes, 1 yellow probe, 1 green probe), shielded probe set, test hammer (1 red, 1 black), safety plug (1 red, 1 black), carrying case, instruction manual
