| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-101-121 | CX-07 | Analog tester, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-101-121 | Analog tester, Custom #CX-07 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-101-121 | Analog tester, Custom #CX-07 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

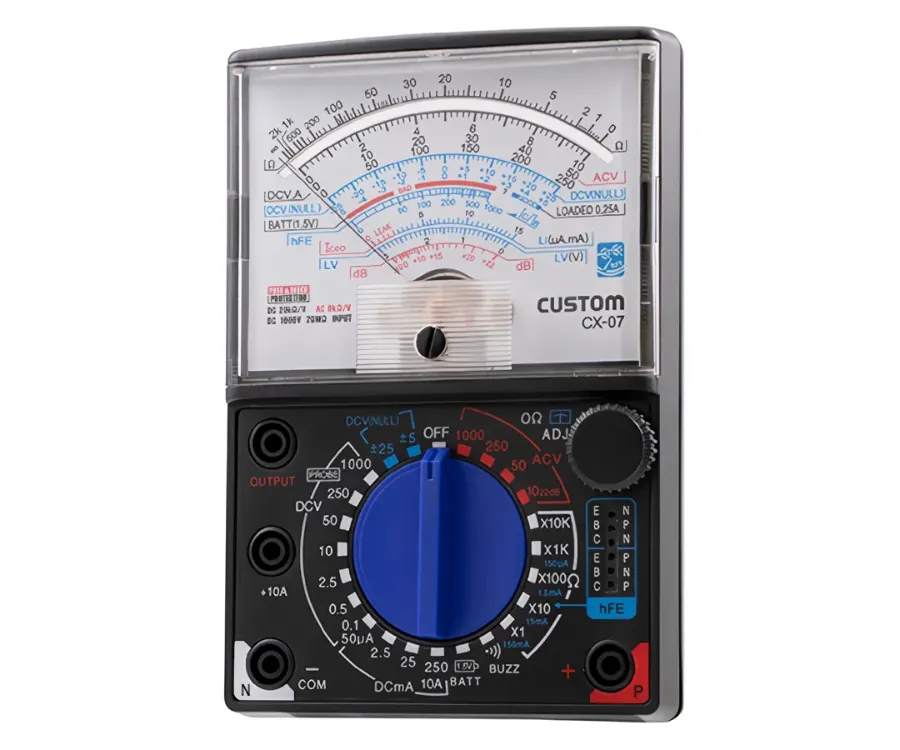

This is a high-quality analog tester.
Measures DC voltage/current, AC voltage, resistance
Multifunctional with dB (decibel) and hFE (transistor gain) measurement
Battery check and continuity check functions included
Gold-plated test lead for improved conductivity
Ideal for factory and field use
AC Voltage (ACV): Range 10/50/250/1000V, Tolerance: ±4% FS, ±5% FS (1000V), Input impedance: 9 kΩ/V
DC Voltage (DCV): Range 0.1/0.5/2.5/10/50/250/1000V, Tolerance: ±3% FS, ±5% FS (1000V), Input impedance: 20 kΩ/V
DC Current (DCA): Range 50 µA/2.5 mA/25 mA/250 mA/10 A, Tolerance: ±3% FS, ±5% FS (10 A)
Resistance: 2 kΩ (×1), 20 kΩ (×10), 200 kΩ (×100), 2 MΩ (×1k), 20 MΩ (×10k), Tolerance: ±3% of scale
Battery Check: Range 1.5 V
Decibel: Range -10 to +22 dB, Tolerance: ±4% FS
Collector Cutoff Current (Iceo)/Diode Forward Current (IF): Range 150 µA/1.5 mA/15 mA/150 mA, Tolerance: ±5% of scale
Diode Forward Voltage (VF): 3–0 V, Tolerance: ±5% of scale
Transistor hFE: Range 0–1000, Tolerance: ±3% of scale
Power supply: 2 AA batteries, 1 9V battery
Dimensions: approx. W100 × H150 × D40 mm
Weight: about 295 g (including battery)
Accessories: Test lead, instruction manual (with warranty)
