| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-102-101 | CDM-50 | Digital multitester, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-102-101 | Digital multitester, Custom #CDM-50 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-102-101 | Digital multitester, Custom #CDM-50 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

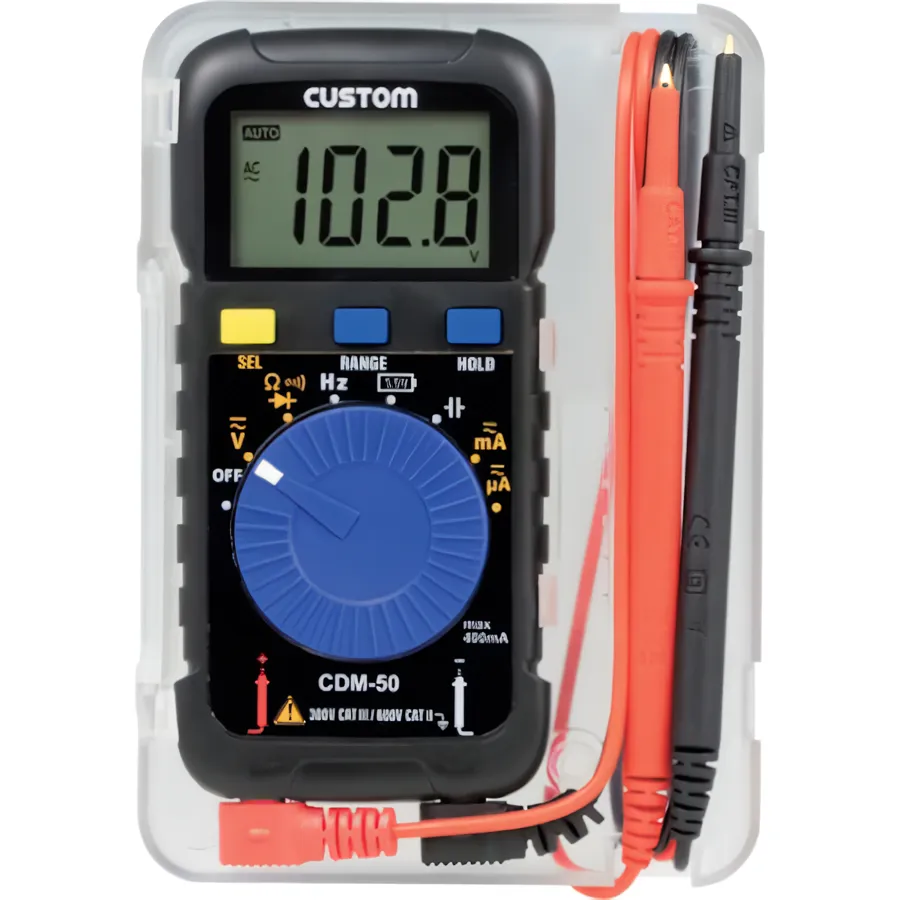

This is a compact and multifunctional digital multimeter capable of measuring voltage (AC/DC), resistance, continuity, capacitance, and performing diode tests. It also features continuity check functions with a buzzer and LED, and a 1.5V battery test function. Optional accessories are available separately.
DC voltage (V): 600
AC voltage (V): 600
Resistance (Ω): 40M
Capacitance (F): 400
Frequency (Hz): 5～500kHz
Current (mA): 400
Battery: 1× CR2032 lithium battery
Measurement functions: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency
DCV: Range 4V/40V/400V/600V, Accuracy ±(2.0%+5dgt)
ACV: Range 4V/40V/400V/600V, Accuracy ±(2.0%+5dgt)
DCA: Range 400μA/4mA/40mA/400mA, Accuracy ±(2.0%+5dgt)
ACA: Range 400μA/4mA/40mA/400mA, Accuracy ±(2.0%+5dgt)
Resistance: Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance: Range 50nF/500nF/5μF/50μF/100μF
Frequency: Range 5Hz～500kHz
A compact and versatile digital multimeter capable of measuring voltage (AC/DC), resistance, continuity, static electricity, and diode tests, equipped with LED and buzzer continuity check features, and 1.5V battery test function.
