| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-104-111 | CDM-7100 | Digital multitester, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-104-111 | Digital multitester, Custom #CDM-7100 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-104-111 | Digital multitester, Custom #CDM-7100 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

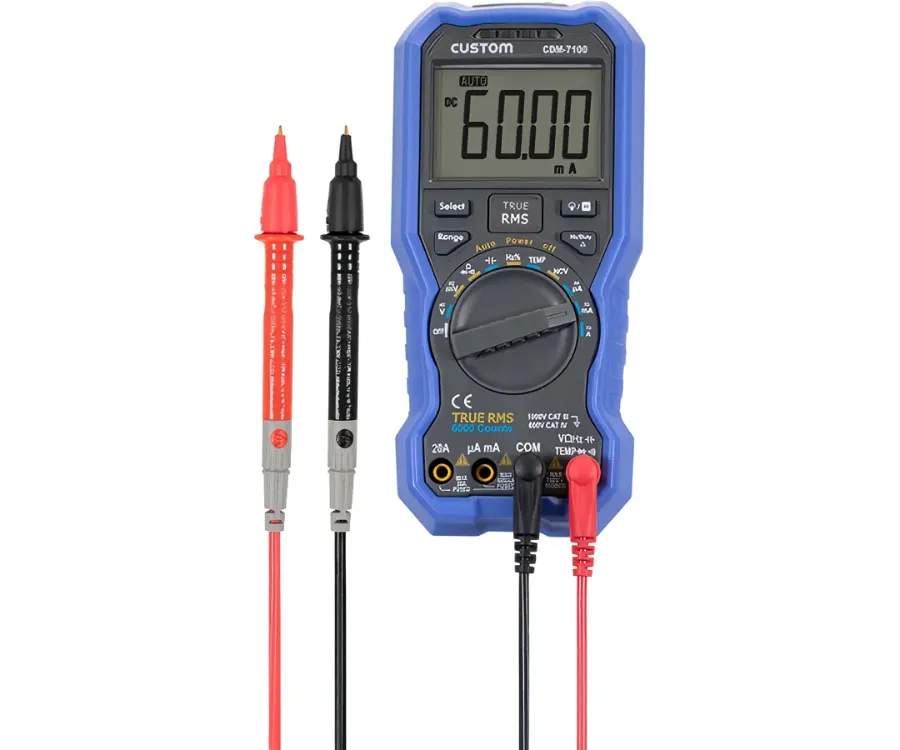

A multifunctional digital multimeter capable of measuring voltage, current, resistance, and more, providing accurate readings with True RMS measurement. Equipped with a backlight and auto power-off functions, it is designed for easy use even in harsh working environments.
Measurement functions: Voltage (DC/AC), Current (DC/AC), Resistance, Capacitance, Temperature, Continuity check, Diode check, Frequency, Detection
Measurement range:
・DC voltage: 0～1000V
・AC voltage: 0～750V
・DC current: 0～20A
・AC current: 0～20A
・Resistance: 0～60MΩ
Other features: Duty check function, Data hold function, Relative value measurement function
Detection method: True RMS
Range switching: Auto/Manual
Size: Approximately W89×H190×D40mm
Weight: Approximately 370g (including battery)
Test lead length: Approximately 75cm
Battery: 2× AAA batteries
Standards: IEC61010-1 CAT III 1000V, CAT IV 600V
A multifunctional digital multimeter supporting CAT IV, capable of use as a power meter. It features True RMS for accurate readings, a backlight for easy viewing in dark environments, an auto power-off function to save battery, and non-contact voltage detection (NCV). Includes LED light for convenience, surface-mountable test leads, and a holster case for protection.
