| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-104-121 | CDM-7300 | Digital multitester, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-104-121 | Digital multitester, Custom #CDM-7300 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-104-121 | Digital multitester, Custom #CDM-7300 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

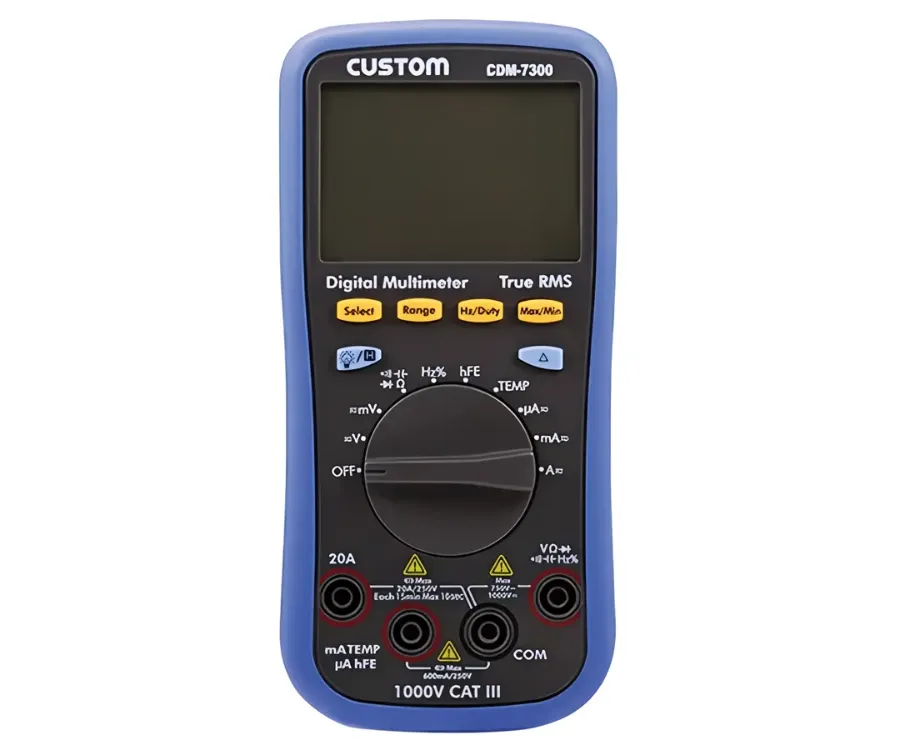

A multifunctional digital multimeter capable of measuring voltage, current, resistance, and more, providing accurate readings with True RMS measurement. Equipped with a backlight and auto power-off functions, it is designed for easy use even in harsh working environments.
Size (mm): 88×37×186
Weight (g): Approximately 320g (including battery)
Battery: 2× AAA batteries (for testing)
Measurement range:
・DC voltage: 600mV, 6V, 60V, 600V, 1000V
・AC voltage: 6V, 60V, 600V, 750V
・DC current: 600μA, 6mA, 60mA, 600mA, 6A, 20A
・AC current: 600μA, 6mA, 60mA, 600mA, 6A, 20A
・Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
・Capacitance: 40nF, 400nF, 4μF, 40μF, 400μF
A digital multimeter equipped with various functions such as voltage (AC/DC), current (AC/DC), resistance, frequency, capacitance, continuity check, and diode check. It supports Duty Check, Data Hold, Relative Measurement, and MAX/MIN value recording. True RMS measurement allows accurate readings even with distorted waveforms. It also supports bar graph display, analog meter functions, and an optional external temperature sensor.
