| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-100-131 | M-03FBM | Digital multitester, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-100-131 | Digital multitester, Custom #M-03FBM | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-100-131 | Digital multitester, Custom #M-03FBM | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

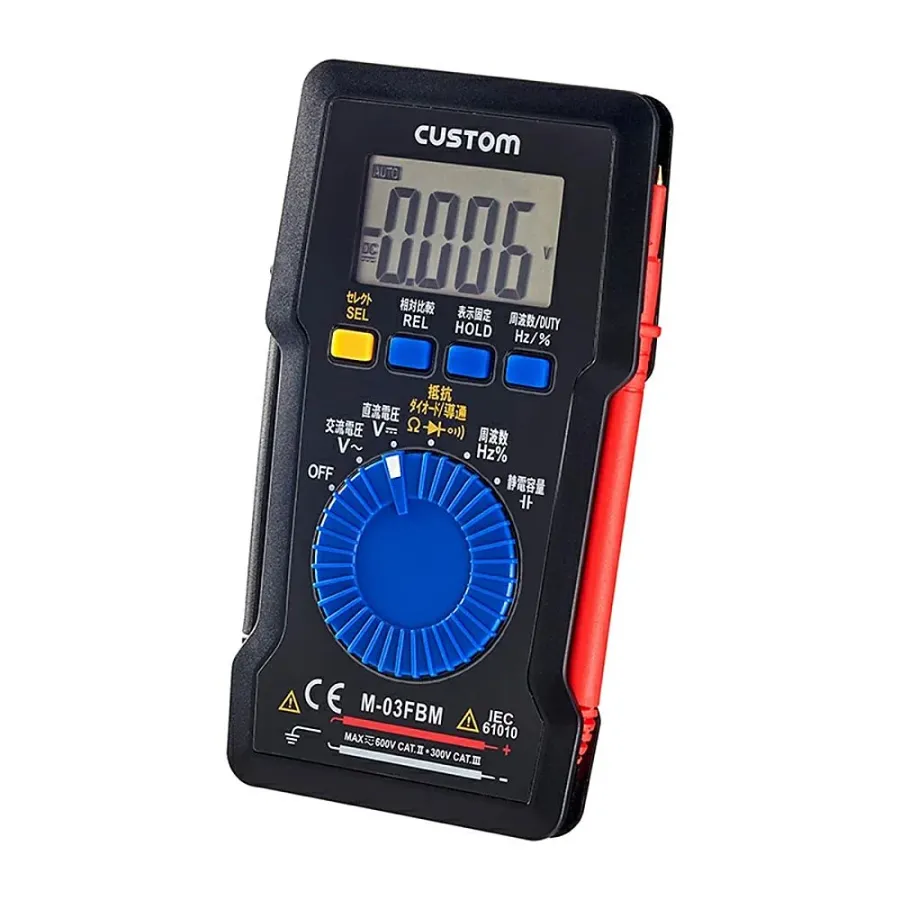

This is a compact and portable digital tester. It can measure voltage, resistance, continuity, and diodes, and is equipped with data hold and auto power off functions.
Size (mm): 70×12.5×127
Weight (g): 101
Measurement items: Voltage (DC/AC), Current (DC/AC), Resistance, Frequency, Static capacitance
Functions: Continuity check (buzzer + LED), Diode check
Measurement range: Voltage (DC/AC) 0～600V (4 ranges), Current (DC/AC) 0～400mA, Resistance 0～40MΩ, Frequency 0～100kHz, Static capacitance 0～100μF
Standards: IEC61010-1 Compliant, CATIII 600V, CATIII 300V
Battery: CR2032 (3V) lithium battery × 1 (for test use)
Equipped with data hold and relative functions.
Internal magnet allows attachment to metal surfaces.
Test leads can be stored by wrapping around the main unit.
