| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 535-1240-100-101 | MCT-1150 | Force tester, AND | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 535-1240-100-101 | Force tester, AND #MCT-1150 | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 535-1240-100-101 | Force tester, AND #MCT-1150 | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

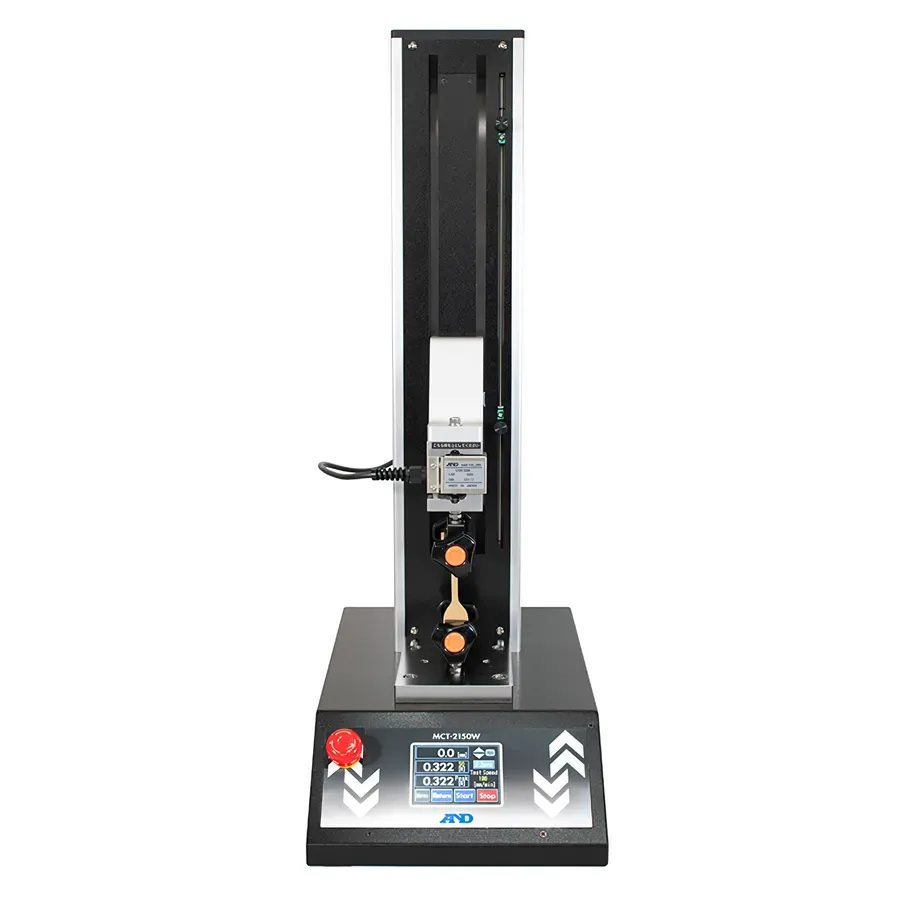

The MCT series tabletop force tester offers a maximum load capacity of 500N with a compact design (250×405×711mm). The MCT-1150 is ideal for general use, while the MCT-2150 provides high precision with a load display resolution of 0.01N. The intuitive touch panel ensures easy operation, and the automatic calibration feature eliminates setup hassles. It includes data capture software for real-time graphing and CSV export, supporting quality control and process optimization in various industries.
Maximum capacity: 500N
Crosshead Stroke: 400mm
Effective Stroke(*1): 315mm
Crosshead Speed: 10–300 mm/min (within 5% of the set value)(*2)
Crosshead Speed Setting: Digital setting (1 mm/min increments within the above range)
Crosshead Speed and Load Capacity: Full speed range at maximum capacity
Crosshead Return Speed: Three speed settings (10, 100, 300 mm/min)
Load Measurement Accuracy: ±0.2% F.S
Load Display Resolution: 0.1 N
(*1) When using standard screw action jaws
(*2) Unladen
Warranty: 1 year
