| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-109-101 | CFL-02R | Full automatic flexible clamp meter, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-109-101 | Full automatic flexible clamp meter, Custom #CFL-02R | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-109-101 | Full automatic flexible clamp meter, Custom #CFL-02R | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

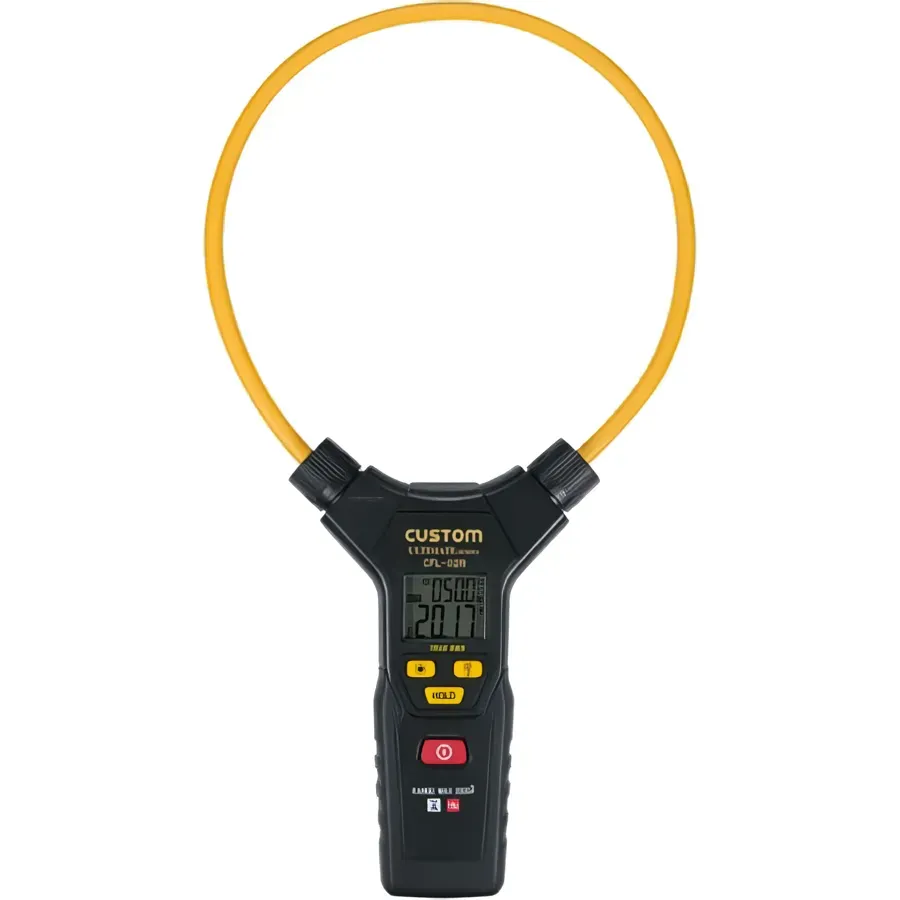

The flexible cable allows for easy measurement even in narrow spaces.
True RMS method enables accurate measurement of effective values even for non-sinusoidal waveforms.
Simultaneous display of current and frequency on the LCD screen.
Adopts a hand-grip style for secure handling.
Equipped with a backlight on the LCD screen for easy reading in dark environments.
Features an LED light to illuminate the measurement object, making operation easier in dark areas.
The data hold function allows for easy confirmation of measured values.
ACA: Frequency: 40–65Hz
Range: 0.2–10A / 10–60A / 60–600A / 600–3000A
Resolution: 0.01A / 0.01A / 0.1A / 0.1A
Accuracy: ±(1.5%rdg+5dgt) (10–600A)
Frequency: 65–200Hz / 0.2–60A / 60–600A / 600–3000A
Resolution: 0.01A / 0.01A / 0.1A
Accuracy: ±(2.5%rdg+5dgt) (0.2–600A)
Frequency measurement: 200Hz–1kHz / 0.2–60A / 60–600A / 600–1000A
Resolution: 0.01A / 0.01A / 0.1A
Accuracy: ±(3.0%rdg+5dgt)
Frequency range: 40–1000Hz
Resolution: 0.1Hz
Accuracy: ±(0.5%rdg+2dgt) for 3A and above
Detection method: True RMS
Display: LCD, 6000 counts
Range switching: Auto
Maximum measurable conductor diameter: φ120mm
Sampling: Approx. 3 times/sec
Operating temperature and humidity: 0–40°C, 80%RH or less (no condensation)
Storage temperature and humidity: -10–60°C, 80%RH or less (without battery, no condensation)
Size: W178×H324×D30mm
Weight: Approx. 138g (including battery)
Battery: AA dry cell x3
Battery life: Approx. 70 hours (with alkaline battery)
Accessories: Storage case, instruction manual
Calibration: Possible
Standard compliance: EN61010-1, EN61010-2-032, EN61326-1 CAT.III 1000V, CAT.IV 600V
