| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1213-108-101 | C-02S | Mini AC clamp meter, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-108-101 | Mini AC clamp meter, Custom #C-02S | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1213-108-101 | Mini AC clamp meter, Custom #C-02S | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

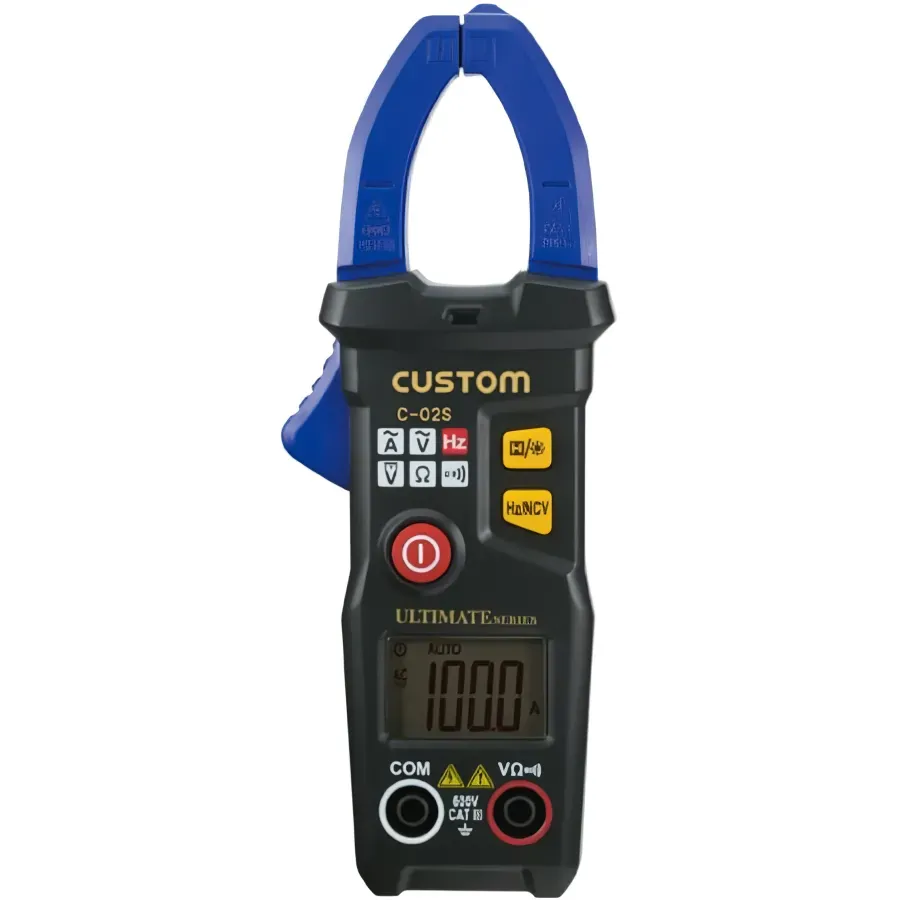

Auto function model for current, voltage, and resistance measurement. A 3-in-1 device combining a clamp meter, tester, and voltage detector.
In addition to AC clamp functions, it includes AC/DC voltage measurement, resistance measurement, frequency measurement, and continuity check functions.
Automatic switching for voltage and resistance.
Equipped with a non-contact voltage detection (NCV) function, backlight function, and auto power-off function.
ACV: Range: 1.0–600V
Resolution: 0.1V
Accuracy: ±(0.8%rdg+5dgt) / 45–65Hz
DCV: Range: 0.5–600V
Resolution: 0.1V
Accuracy: ±(0.5%rdg+3dgt)
ACA: Range: 0.01–6A / 6–60A / 60–200A
Resolution: 0.001A / 0.01A / 0.1A
Accuracy: ±(2.5%rdg+8dgt) / 45–65Hz
Ω: Range: 0–6kΩ
Resolution: 0.001kΩ
Accuracy: ±(0.8%rdg+3dgt)
Frequency: Range: 40–60Hz / 60–1000Hz
Resolution: 0.1Hz / 1Hz
Accuracy: ±(1.0%rdg+5dgt)
Continuity check: 0–50Ω: Buzzer sounds
Non-contact voltage detection: AC90–1000V: Buzzer sounds, LED blinks
Detection method: Average value detection
Display: LCD, 6000 counts
Range switching: Auto
Maximum measurable conductor diameter: φ20mm
Sampling: Approx. 3 times/sec
Operating temperature and humidity: 0–40°C, 75%RH or less (no condensation)
Storage temperature and humidity: -10–50°C, 75%RH or less (without battery, no condensation)
Size: W63×H158×D28mm (excluding clamp opening part)
Weight: Approx. 136g (excluding battery, including test lead)
Battery: AA dry cell x2
Battery life: Approx. 105 hours (with alkaline battery)
Accessories: Storage case, instruction manual, test leads x1 set
Option: Test lead / ATL-3N
Calibration: Possible
Standard compliance: IEC61010-1, IEC61010-2-30, IEC61010-2-032 CAT.II 1000V, CAT.III 600V
