| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 114-1212-103-111 | IR-309 | Radiation thermometer, Custom | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1212-103-111 | Radiation thermometer, Custom #IR-309 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 114-1212-103-111 | Radiation thermometer, Custom #IR-309 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

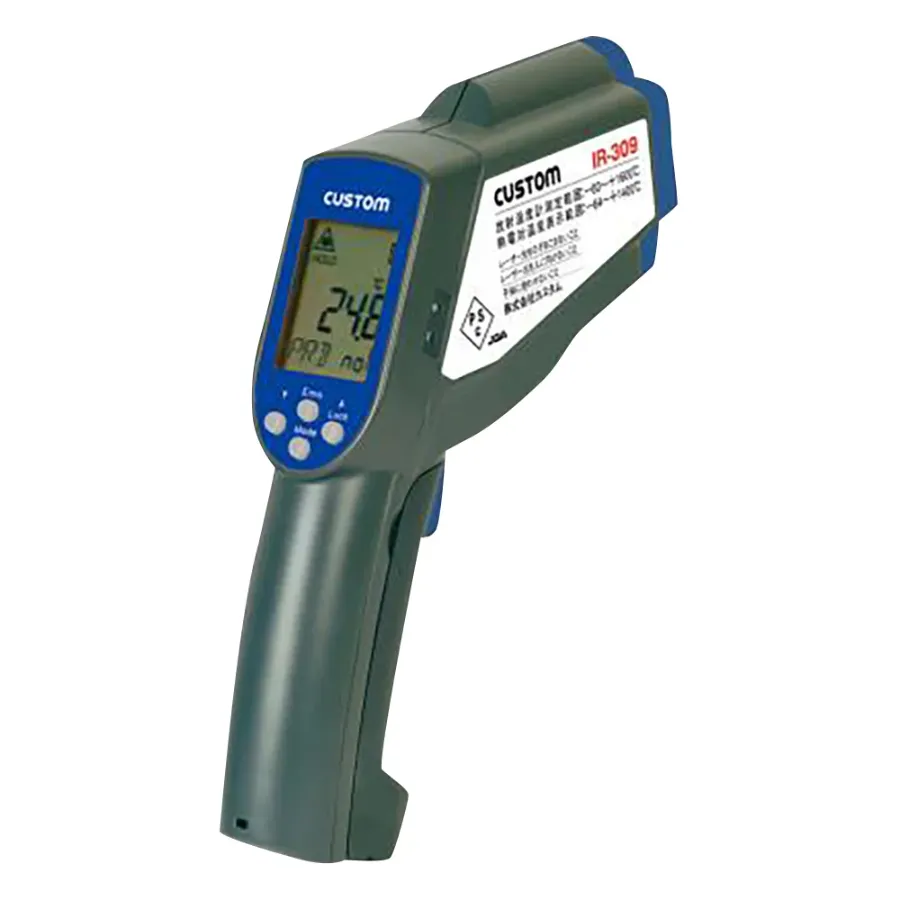

This is a radiation thermometer manufactured by CUSTOM Corporation.
Measurement range (°C): -60 to +1600
Resolution (°C): -19.9 to +199.9/0.1, others/1
Accuracy: ±2%rdg or ±3°C (whichever is larger)
Repeatability: ±0.6°C or ±1.2%rdg (whichever is larger)
Emissivity: 0.10 to 1.00 (0.01 steps)
Distance coefficient (D:S): 75:1
Response time: 1 second
Size (mm): 47×196×200
Weight (g): Approx. 392
Power supply: AAA batteries ×2 (for testing purposes)
Functions: Maximum value display, Minimum value display, Average value display, Hold, Laser marker (2 points), Backlight, K-type thermocouple measurement (sensor sold separately, IK series sensor probe), Auto power-off, Thermocouple measurement, Includes hard case
※When using in contact mode, a separately sold sensor is required. Please choose from the IK series.
This is a radiation thermometer that can also be used with a K-type thermocouple sensor (sold separately, IK series).
Equipped with a dual-point laser marker, capable of measuring up to +1600°C.
Infrared surface temperature thermometer with a two-point laser marker for accurate targeting.
Gun-type design for a comfortable grip.
Hybrid type capable of temperature measurement using a K-type thermocouple sensor (sold separately) (-64 to +1400°C).
Temperature display: 0.1°C increments.
Capable of measuring surface temperature in approximately 1 second.
Hold function for fixed temperature display.
Emissivity: Adjustable from 0.10 to 1.00 in 0.01 increments.
Equipped with MAX (maximum) / MIN (minimum) memory function.
AVERAGE (average) display function.
HI (upper limit) / LO (lower limit) alarm function.
Backlight function.
Auto power-off function (if no operation is detected for 1 minute, it will automatically turn off. For thermocouple measurement, it turns off after 12 minutes).
LOCK (continuous measurement) function.
PSC mark certified product.
