| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 301-1311-100-101 | 1-4594-31-90 | Thermax water bath 220V, TMK-1A-F, AS1 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 301-1311-100-101 | Thermax water bath 220V, TMK-1A-F, AS1 #1-4594-31-90 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 301-1311-100-101 | Thermax water bath 220V, TMK-1A-F, AS1 #1-4594-31-90 | 1 Pc. | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

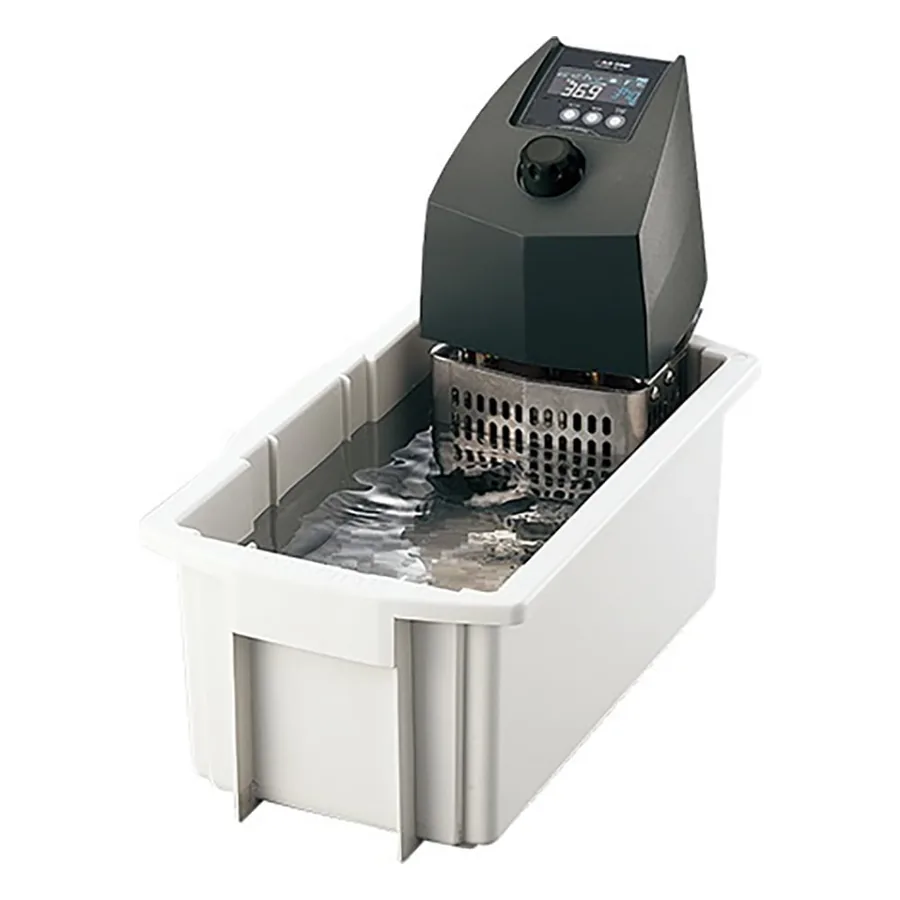

Compact benchtop water bath with jet stirring and circulation to keep bath temperature uniform.
Microcomputer PID control with a low-error Pt100 platinum sensor supports accurate temperature control from room temperature +5 to 80°C, and temperature setting down to -20°C when used with an external cooling device.
Jog-dial setting and an easy-to-read LCD with negative backlight, plus timer up to 99 h 59 min with buzzer notification and double-lock safety circuits with overheat prevention thermostat.
Manual: 3011311100 Thermax water bath 220V
Type: Water bath
Body dimensions: 150 x 160 x 308 mm
Effective inner dimensions: 180 x 252 x 153 mm
Temperature control range: Room temperature +5 to 80°C
Temperature adjustment accuracy: ±1.0°C (in-house test value)
Temperature setting range: -20.0 to +80.0°C (no cooling function; use an external optional cooling device)
Sensor: Pt100 Ω
Heater capacity: 1 kW
Stirring mechanism: Jet stirring type
Pump capacity: Max discharge 10 L/min; max head 1.4 m
Timer setting range: 1 min to 99 h 59 min (1 min increments)
Clamp mountable width: 40 mm
Power: 220 VAC 50/60 Hz
Accessories: Water tank (PP); RoHS2 (EU) 2015/863 compatible
