| Order No. | Code | Product Name | Pack | Price |
|---|---|---|---|---|
| 535-1110-102-131 | HW200KC | Dust & water resistant digital platform scale, AND | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 535-1110-102-131 | Dust & water resistant digital platform scale, AND #HW200KC | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***
| Order No. | Product Name | Pack | Price |
|---|---|---|---|
| 535-1110-102-131 | Dust & water resistant digital platform scale, AND #HW200KC | 1 Unit | ASK |
*** If you would like to request an inspection report or a calibration certificate, please contact us in advance. ***
*** Prices shown do not include VAT. ***

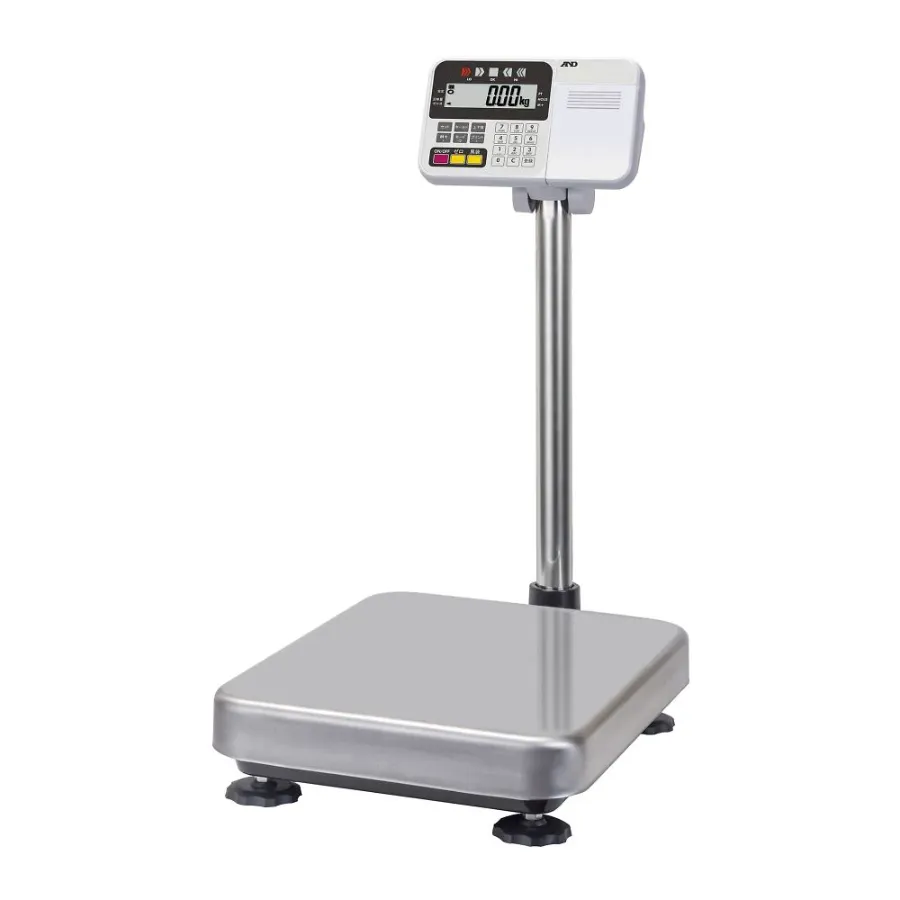

The HW-C series are a high-precision digital platform scale designed for industrial use. It is equipped with an IP65-rated dust and water-resistant weighing platform, making it suitable for harsh environments. The scale offers a comparator function with a 3-color LED indicator for efficient weighing operations. It supports both AC adapter and battery operation. The display unit has a tilt-adjustable design for easy readability. Optional accessories include USB and RS-232C interfaces for data communication, a relay output module, and an extension cable.
Capacity: 220kg
Maximum Counting Capacity: 110,000 counts
Resolution: 0.02kg
Weighing Pan Dimensions: 390(W) × 530(D) mm
Weight: Approximately 17kg
Material
Weighing Pan: SUS430 (Stainless Steel)
Display Unit: ABS
Pole: SUS304
Pole Base: ADC12 (Aluminum Die-Cast)
Power: AC adapter or battery
Optional Accessories
USB Interface (Bidirectional): HVW-02CBJA
RS-232C Output (D-Sub9P): HVW-03CJA
Comparator Relay Output/Buzzer/Contact Input: HVW-04CJA
Extension Cable (5m): HVW-08C
Wall Mount Bracket: HVW-11C
Display Unit Protective Vinyl Cover: AXP-3003217D
Warranty: 1 year Approximately 17kg
Material
Weighing Pan: SUS430 (Stainless Steel)
Display Unit: ABS
Pole: SUS304
Pole Base: ADC12 (Aluminum Die-Cast)
Power: AC adapter or battery
Optional Accessories
USB Interface (Bidirectional): HVW-02CBJA
RS-232C Output (D-Sub9P): HVW-03CJA
Comparator Relay Output/Buzzer/Contact Input: HVW-04CJA
Extension Cable (5m): HVW-08C
Wall Mount Bracket: HVW-11C
Display Unit Protective Vinyl Cover: AXP-3003217D
Warranty: 1 year
